Network Management Lab

1. Introduction to Network Management

By default, all virtual machines are attached to the OpenShift software-defined network (SDN), which enables access from other workloads on the OpenShift cluster, including other VMs and any OpenShift native applications.

  • The SDN provides additional features for abstracting, connecting, and exposing applications in a controlled manner, whether deployed as VMs or Pods in the cluster. These include the Service and Route features of OpenShift.

  • OpenShift’s network policy engine allows the VM user or administrator to create rules which allow or deny network traffic to and from individual VMs or entire projects/namespaces.

However, virtual machines may also connect directly to one or more external networks, such as VLANs, when needed. This is in addition to the SDN, which means that, for example, the administrator can connect to the VM from an external IP address, but the application communicates across the SDN with other VMs hosted by OpenShift Virtualization.

At a high level, this is done by configuring the host networking, by creating a NodeNetworkConfigurationPolicy such as creating a mode 4 (LACP) bond and a OVS bridge on top. With this networking infrastructure set up, we can define NetworkAttachmentDefinitions to allow VMs to connect to that bridge, and therefore, directly to the external network. The next section in this lab will cover those steps.

To manage an OpenShift node’s network configuration you use a tool, available as an operator, called NMState. With NMState you can create network interfaces on OpenShift compute nodes using Kubernetes constructs or the NodeNetworkConfigurationPolicy (NNCP) wizard available in the OpenShift console. You can create devices and customize those so that they follow the naming conventions that suit your needs, and your network requirements. For more info about NMState, and to learn more about the host networking and how to view and manage the configuration, see the documentation here.

The OpenShift environment has already been configured with a Linux Bridge on each compute node your virtual machines will connect to, thus allowing for easy connectivity with/from outside network resources.
Goals

  • Create a network attachment definition

  • Connect a VM to the external network

2. Create Network Attachment Definition

In order to use the Linux Bridge with your VM you need to create a Network Attachment Definition. This is what tells OpenShift about the network and allows the virtual machines to connect to it. Network Attachment Definitions are specific to the project/namespace they’re created in, unless they’re created in the default project. This gives you, the administrator, the ability to control which networks are and aren’t available to users who have access to manage their own Vms. Once the Network Attachment Definition has been created, it can then be used by virtual machines when configuring their network adapters.

A network attachment definition instructs openshift to utilise an existing network device. In our case that device was previously created and is named br-flat. You must use that name or OpenShift won’t be able to place your VM on any compute nodes as it can only utilise nodes with that specifically named network device on it.

How is this done?

To manage an OpenShift node’s network configuration you use a tool, available as an operator, called nmstate. With nmstate you can create network interfaces on OpenShift compute nodes using Kubernetes constructs. You can do this following naming that suits your needs and network requirements. For more info about nmstate, and to learn more about the host networking and how to view and manage the configuration, see the ([nmstate documentation](https://docs.openshift.com/container-platform/latest/networking/k8s_nmstate/k8s-nmstate-observing-node-network-state.html)) or speak with your lab proctors."

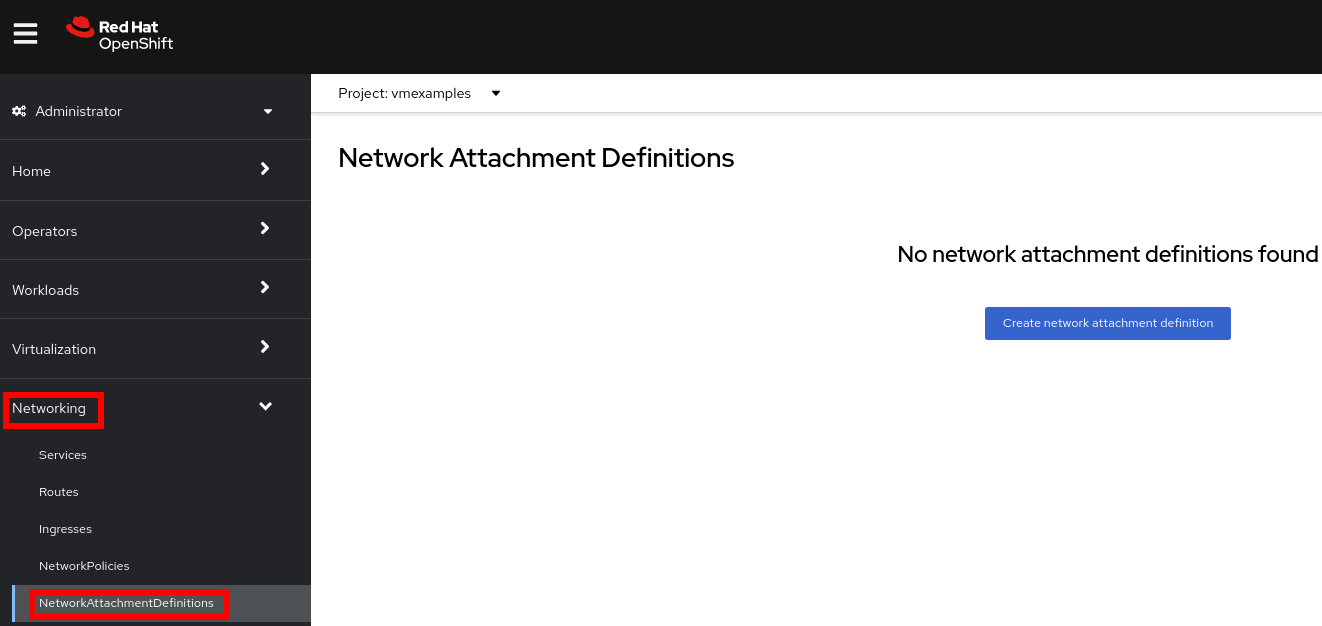

  1. Navigate to Networking → Network Attachment Definitions and click Create network attachment definition:

    01 NAD Dashboard

    Select project vmexamples.

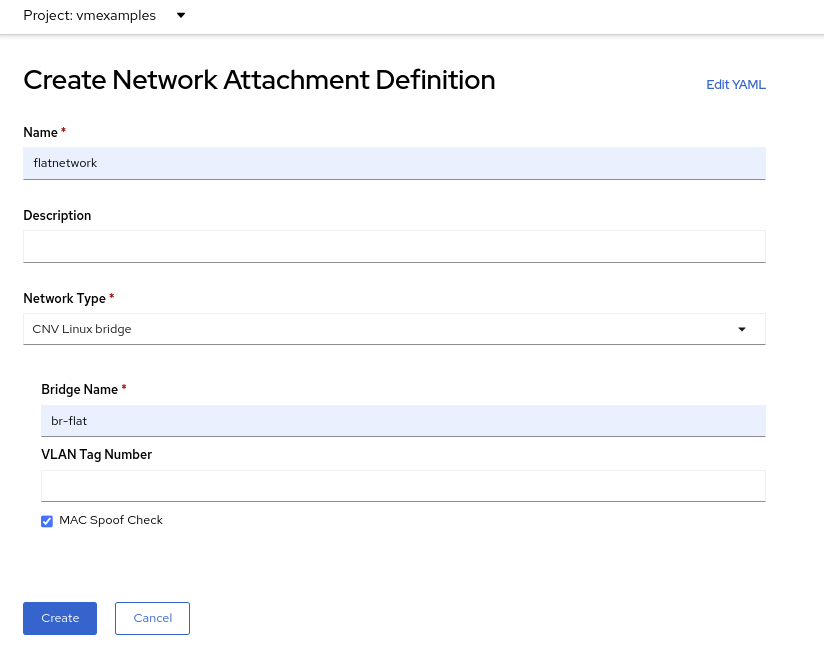

  2. Complete the form for the vmexamples project as follows, then click Create network attachment definition:

    • Name: flatnetwork

    • Network Type: CNV Linux Bridge

    • Bridge Name: br-flat

      02 NAD Create
      The form above has an input for VLAN Tag Number, which is used when connecting to a network that needs to have a VLAN tag assigned. This lab uses an untagged network, so no VLAN number is required here.

      A single Linux Bridge on the host can have many different VLANs. In this scenario, you only need to create a Network Attachment Definition for each one, not a separate host interface and bridge.

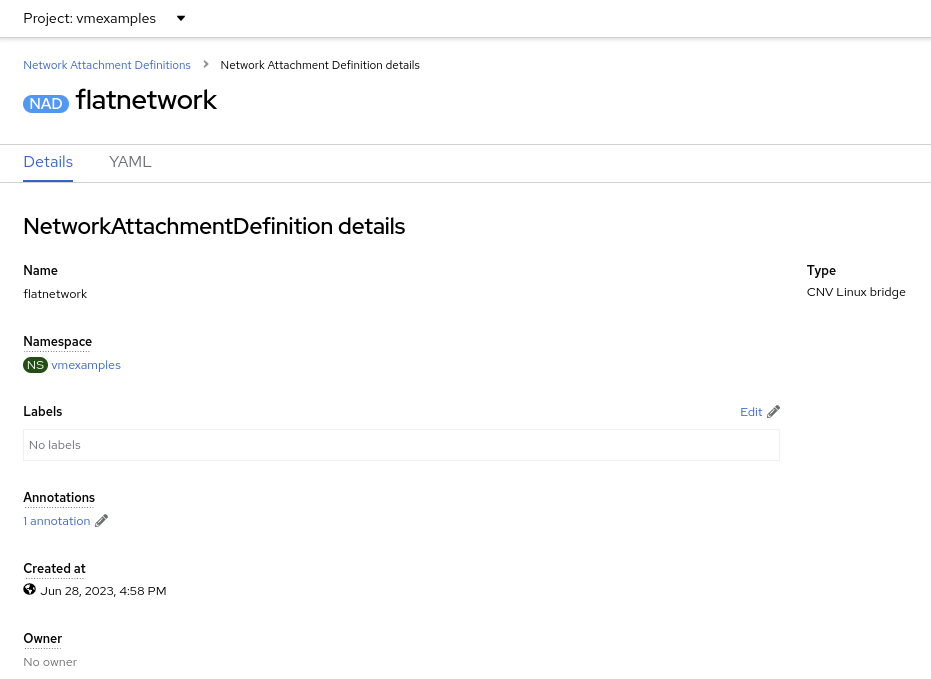

  3. Examine the details of the network attachment definition. Because this was created in the vmexamples project, it will not be available in other projects.

    03 NAD Created

3. Connect a virtual machine to the external network

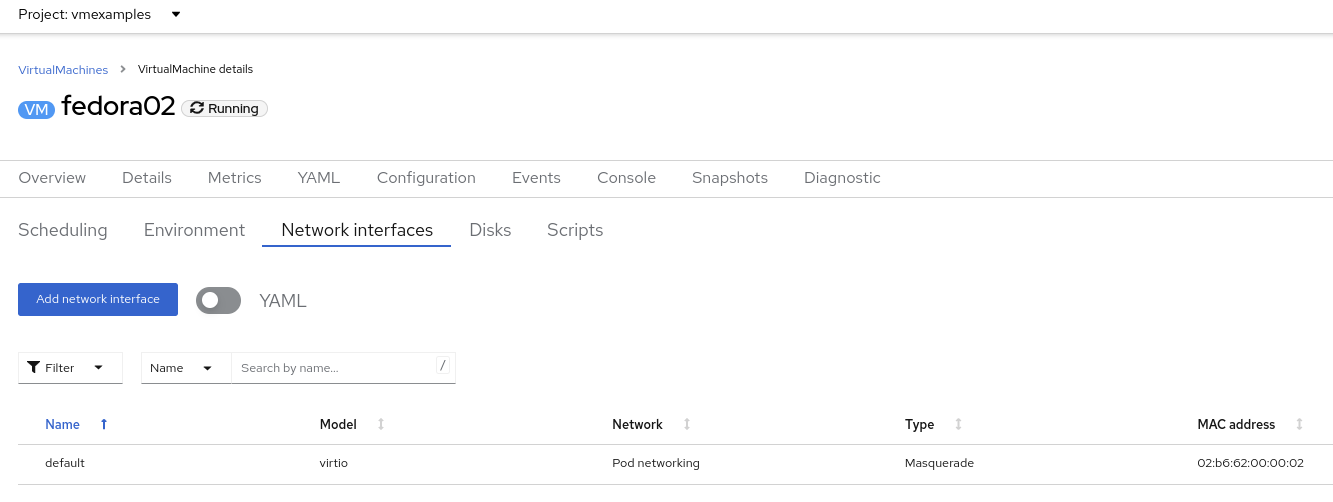

  1. Navigate to Virtualization → VirtualMachines, select the fedora02 VM. Click Configuration tab and then click the Network Interfaces subtab:

    04 VM Network Tab

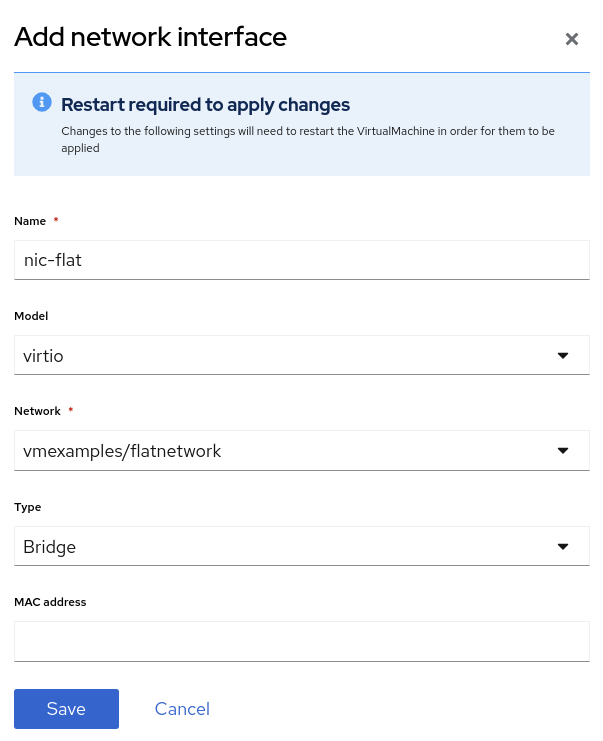

  2. Click Add Network Interface, complete the form as shown, then click Save.

    Because this is a bridge connecting to the external network, we don’t need to rely on any OpenShift features or capabilities to enable access, such as masquerade (NAT) for the virtual machines using the network. As a result, type should be Bridge here.

    05 VM Network Attach

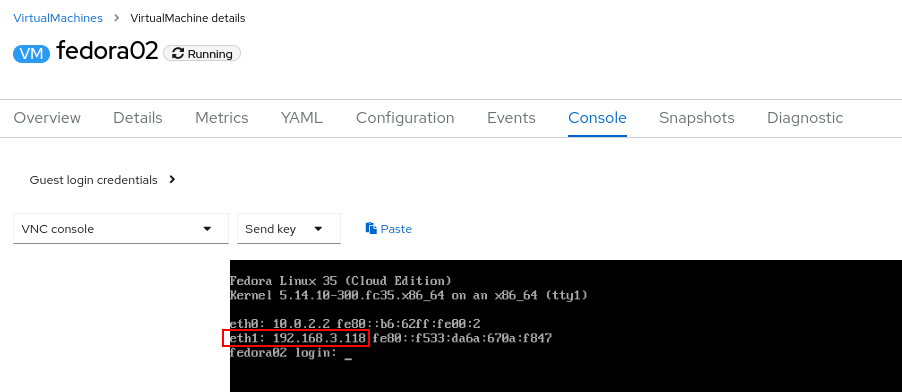

  3. Use the Actions menu to restart the VM. After rebooting, navigate to the Console tab:

    06 VM Network Console

    The eth1 interface obtains an IP address from the flat network (192.168.3.x/24). That network has a DHCP server providing IPs to that network.

  4. (Optional) Verify external connectivity of the VM using the OpenShift web terminal.

    1. Open a terminal by pressing the right-top icon:

      OCP Terminal Icon

    2. A console in the bottom part of the screen will appear

      OCP Terminal

    3. Type the following command replacing the IP

      curl 192.168.3.118:22
      Replace the IP which the IP assigned to the node.
      Sample Output
      SSH-2.0-OpenSSH_8.7
